Application

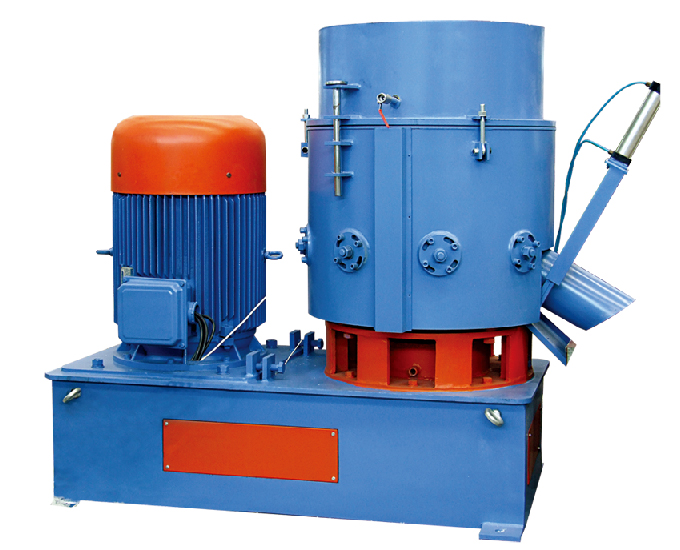

The agglomerator is an equipment intended to increase the density of plastic films, resulting in agglomerated material for direct feed to the processing machines (injection machines, extruders and blow moulders).

The agglomeration is carried out by a mechanical process, and there is no heat source, therefore there is no degradation of the raw material.

Typical applications: agglomeration of raw material bags, lateral cuts of coils, loose films, etc.



Working principle

Putting the waste into machine pot body make the material be quickly cut by the high speed rotating turn the blade and the fixed blade shear,then the material along the pot body wall by the knife dish centrifugal force function ,at the same time, the material turning up and down by paddle and from all around to move towards to the center of the pot body. The friction of material itself and friction of pot wall and blades produce much friction heat under the high speed, making the materials temperature rises to the half-plastic condition and connects to small lump. Before the materials will block, advanced preparation quantitative water will all spray to the material. The cold water touch the hot materials will gasify and take out the surface heat soon , making the surface of the materials cool quickly and avoid blocking, then after crushing effect between rotary blade and fixed blade to cut into particles(irregular size materials). During the crushing, Also may join the appropriate color pigments according to needs.

1. The PP/PE Plastic Agglomerator is used for fast recycling of waste films,woven bags.

2. The Machine can  quickly granulate used thermoplastic film or the thermoplastic products which thickness less than 2mm.

3. It's applicable to the agglometating of soft polyvinyl chloride, HD/LD polyethylene, polypropylene, polystyrene and other used thermoplastic products or film.

 4. The granules produced by the plastic agglomerator can be supplied to pelletizing machine for further granulating or just fed to extruer and injection machine.

 5. This agglomerator is mainly used for cutting and recycling thermoplastic film, soft

polyvinyl chlorid (PVC) waste chemical belt etc, such as garbage bags, carry bags and milk pouches.

6. It is for augmentation of the bulk density of the LDPE, HDPE , PP , BOPP, PET film & bags flakes.

Technical Specification
