200mm-800mm HDPE Double-wall Corrugated pipe extrusion line (Vertical type)

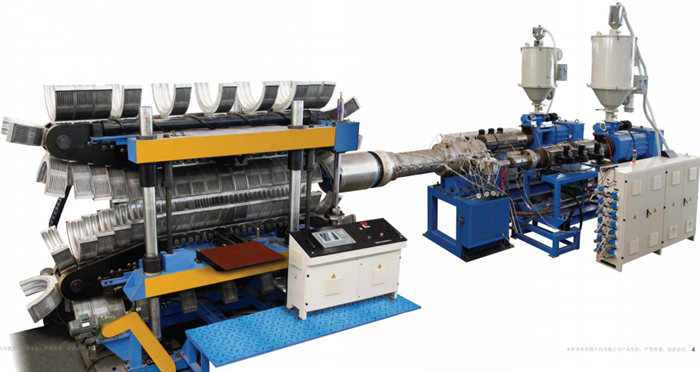

200mm-800mm HDPE Double-wall Corrugated pipe extrusion line (Vertical type) - Image 1

Barus energy  manufactures big Corrugated Pipe Extrusion Line in China. As the super manufacturer, Barus supplies PE/PP large diameter corrugated pipe extrusion machines from size 200mm to 1200mm. It starts to make single wall corrugated pipes, then to double wall corrugated pipes and then triple or more layers of pipes. The whole production line is combined with Main extruders, both single screw extruder and twin screw extruders are applicable. After the extruder, it comes to the forming die set, then followed with corrugator, haul-off, cooling tank, cutter and stacker. The whole production line is centralized to be controlled by PLC control system. The final products are 200mm to 1200mm corrugated pipes, which used as sewer and drainage pipes in road construction and civil engineering, water conveying pipes, main collectors in agricultural drainage, manholes and other applications.

Technical Specification

Single Screw Extruder Series:

Model OD(mm) Extruder Extruder power Max.Output(kg/hr) Max.speed(m/min)
SBG-600  ∅200-600 SJ75/33 90KW 750 4.2
SJ90/33 132KW
SGB-800 ∅200-800 SJ90/33 132KW 1100 4.2
SJ120/33 200KW



Conical Twin screw extruder Series:

Model OD(mm) Extruder Extruder power Max.Output(kg/hr) Max.speed(m/min)
SBG-600  ∅200-600 SJZ80/156 55KW 750 4.2
SJZ80/156 75KW
SBG-800 ∅200-800 SJZ80/156 75KW 1100 4.2



PRICE: 240.000 - 310.000 EUR
