20-63mm PE PP small corrugated pipe extrusion line

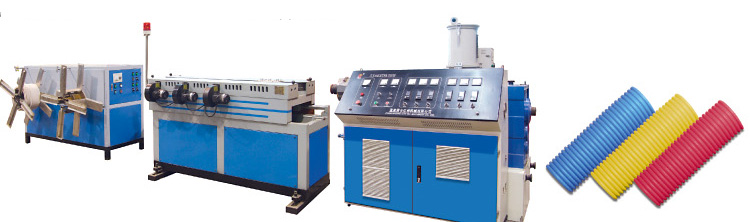

20-63mm PE PP small corrugated pipe extrusion line - Image 1

Barus Energy manufacture Small Corrugated Pipe Extrusion Line, which is applicable for PE, PP and PVC material. The small corrugated pipes are widely used in machinery tool, machine building, electric insulation protection system, electric automatic control system, public traffic equipment, electric locomotive and air-conditioner equipment, etc.

Barus Energy adopts European most advance technology to ensure the machine with high performance in small corrugated pipe manufacturing industry. The machine adopts special single screw extruder for PVC , PE, PP materials, using gear driving and pathway running mould block system, we have both water and air cooling system according to requirements, which ensure the corrugated pipe being produced in high speed with good quality.

Technical Specification


Model Pipe Diameter(ID)(mm) Extruder Type Output(kg/hr) Speed(m/min) Molding
YLSC-20 4mm-7mm SJZ35/30 10-30 5-15 54 pairs
YLSC-50 10mm-50mm SJZ45/33 60-100 15-20 44-72 pairs
YLSC-63 20mm-63mm SJZ65/30 100-150 10-20 60-72 pairs
YLSC-100 40mm-100mm SJZ65/33 100-180 6-15 60 pairs


PRICE: 40.000 - 65.000 EUR
