200mm-3000mm HDPE winding pipe extrusion line

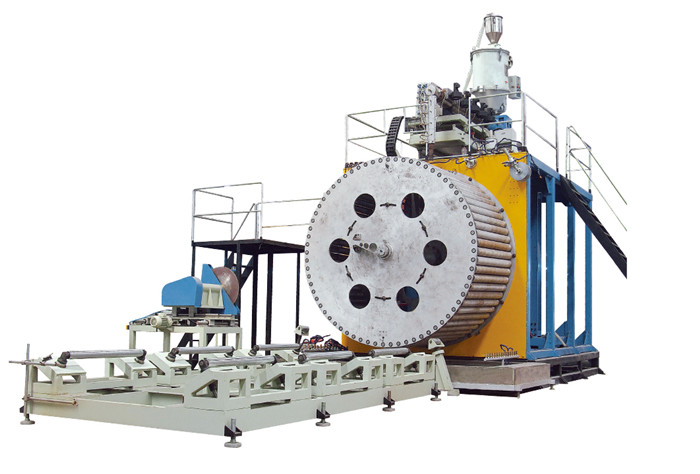

200mm-3000mm HDPE winding pipe extrusion line - Image 1

Absorbing advanced foreign technology, Barus Energy has designed and developed Large Diameter Winding HDPE Pipe Production Line. Our extrusion line can produce pipes with diameter from 200mm to 3000mm. These durable pipes can replace the common steel pipes and concrete pipes in drainage system. According to different purpose, there are four hardness degree, and the Max. ring stiffness can attach 16KN/m2. It is suitable for the sour or alkali liquid below 10%. This kind of pipes offer corrosion resistance, light weight, long service life (50 years).  The pipes are widely used as sewer in highway, municipal construction, uptown, playground, square, mine, bridge, and agriculture etc.

Technical Specification

Model Pipe Diameter(ID)(mm) Max Capacity(kg) Installation Power
CHR800 200mm-800mm 400 283
CHR1200 400mm-1200mm 500 335
CHR1600 800mm-1600mm 600 340
CHR1800 800mm-1800mm 600 445
CHR2200 1000mm-2200mm 700 500
CHR3000 1600mm-3000mm 800 670



PRICE: 80.000 - 450.000 EUR
